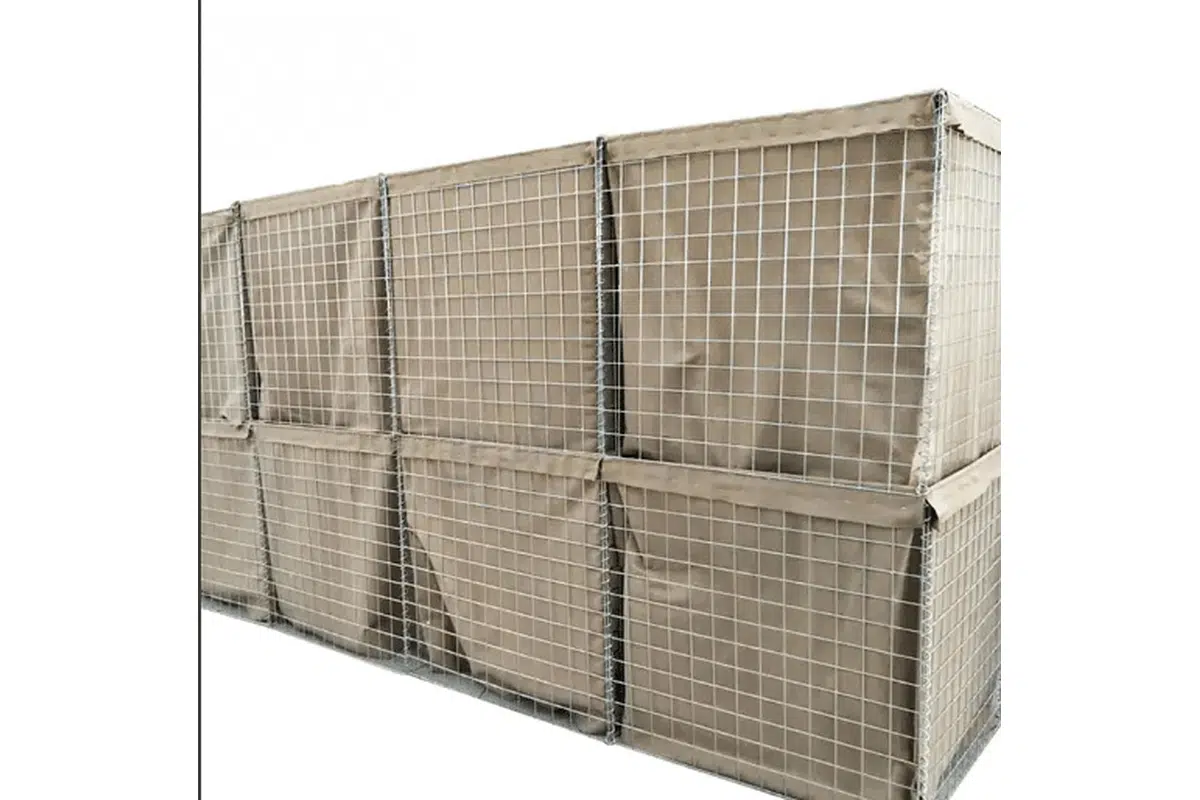

Geotextile lined defensive barrier unit reference
Helps buyers review unit form, liner route and fillable barrier structure before RFQ
Defensive Bastion Barriers for Perimeter and Civil Works
Defensive Bastion Barriers are welded mesh barrier units with lining options for site boundary, flood control, erosion control, stockyard separation and project perimeter supply. Quotation depends on unit size, wire diameter, mesh opening, coating, lining material, connection method and packing.
Page sections
What should buyers confirm before sourcing defensive bastion barriers?
Defensive bastion barrier RFQ should start with measurable product-supply fields: unit size, connected set layout, wire diameter, mesh opening, geotextile lining material and weight, surface treatment, connection method, quantity, packing method, destination port, trade terms and required documents. Fill material, site design, legal use and project performance should be confirmed by qualified project-side parties before procurement.
Product Overview
ANJIA supplies defensive bastion barriers as welded mesh barrier units with geotextile lining for project-specific perimeter, temporary boundary, flood control and site separation procurement discussions. The existing specification table already covers unit size, wire diameter, mesh opening, lining material, surface treatment, connection method and packing route.
For this product route, buyers should separate product supply from project performance. ANJIA can review unit format, mesh panel construction, liner weight, galvanized finish, connection accessories, flat-pack or pallet packing, shipment proof and document scope. Fill material, site foundation, installation method, local approval and final performance acceptance should remain with the buyer's qualified project team.
Specifications
| Specification | Common options | Quotation note |
|---|---|---|
| Barrier type | Welded mesh defensive barrier unit with geotextile lining | Confirm single unit, connected sets or full project layout requirement. |
| Unit size (H×W×L) | 1.0×1.0×1.0m / 2.0×1.0×1.0m / Custom dimensions | Standard sizes; confirm height, width and length per project drawing. |
| Wire diameter | 4.0mm / 5.0mm / 6.0mm (high tensile steel ≥500 MPa) | 4.0–5.0mm is industry standard. 3.0mm NOT recommended for heavy fill applications. |
| Mesh opening | 50×50mm / 75×75mm / 100×100mm | 75×75mm (3"×3") is most common. Opening must match filling material size. |
| Lining | UV-stabilized PP geotextile (250–300 g/m²) / Polyester fabric / Custom | Confirm lining weight (g/m²) and color (beige/green/grey) before production. |
| Surface treatment | Hot-dip galvanized (≥275 g/m², ISO 1461) / Electro-galvanized (light duty only) | Hot-dip zinc coating is mandatory for long-term outdoor use. |
| Connection method | High-strength helical wire coil / Connecting rings | Standard 4.0mm spiral pins for fast modular assembly. |
| Packing | Stacked bundles on wooden pallet / Wooden crate / Steel cage | 1.0m units: 10–15 pcs/pallet; confirm packing to optimize shipping volume. |
How to Specify Defensive Bastion Barriers for RFQ
To specify defensive bastion barriers for RFQ, send unit length, width and height, connected set layout, wire diameter, mesh opening, geotextile lining material and weight, lining color, surface treatment, connection wire or ring route, quantity, pallet or crate packing method, destination port, trade terms, inspection photo requirement and document package expectation.
Defensive bastion barriers can be quoted as welded mesh barrier units with lining and packing options when the buyer provides unit length, width and height, connected set layout, wire diameter, mesh opening, lining material, lining weight, lining color, surface treatment, connector route, quantity, pallet or crate method, labels, destination and document needs. Importers, contractors and project procurement teams should separate single units, connected sets and flat-packed supply routes before comparing prices.
Typical RFQ details
Product specification
- Wire diameter and mesh opening
- Material route: high tensile steel or buyer-defined steel route
- Geotextile lining: PP or polyester fabric, liner weight, color and fixing method
- Project-side requirement: fill material, site layout, installation method, legal use and performance acceptance should be confirmed by qualified parties
Finish and application
- Surface treatment: hot-dip galvanized, electro-galvanized or buyer-defined coating route
- Connection method: spiral wire, helical coil, rings or other connector route
Order and document scope
- Unit size: height, width, length and connected set layout where applicable
- Accessory scope: liner, connectors, caps, labels or accessory cartons where required
- Packing: flat pack, folded pack, pallet, wooden crate, waterproof protection and label plan
- Quantity, destination port and trade terms
- Inspection photos, packing proof and required document package
Product Formats / Options
| Format / option | Best for | Buyer notes |
|---|---|---|
| Single defensive barrier unit | Buyer needs a standalone welded mesh unit with liner for quotation review | Confirm HxWxL size, wire diameter, mesh opening, liner material and packing. |
| Connected barrier set | Buyer needs multiple units supplied as linked sections or project lots | Confirm unit count per set, connection method, bundle quantity and layout drawing if available. |
| Flat packed barrier panels | Freight-saving supply route for welded mesh barrier units before assembly | Confirm folded or flat pack dimensions, pallet quantity and receiving method. |
| Geotextile lined unit | Standard route when the barrier requires liner support for fill material | Confirm PP or polyester liner, g/m2 weight, color and fixing method. |
| Heavy duty galvanized route | Outdoor-oriented route using stronger wire and hot dip galvanized finish | Confirm wire diameter, mesh opening, zinc expectation and document needs. |
| Custom size or project drawing route | Buyer-defined dimensions, liner, connector or packing route | Provide drawing, sample or approved specification before quotation. |
| Defensive bastion barrier vs welded gabion box | Buyers comparing lined welded mesh barrier units with welded gabion boxes for civil works, site boundary, flood control or project supply | Confirm unit size, wire diameter, mesh opening, lining route, connector method, coating, packing and destination. |
Material and Surface Finish Options
| Option | When buyers discuss it | RFQ notes |
|---|---|---|
| Hot-dip galvanized finish | Main outdoor corrosion-protection route for welded mesh barrier units | Confirm zinc expectation, exposure environment and document needs. |
| Electro-galvanized finish | Light duty or cost-sensitive supply route where buyer specification allows it | Confirm application boundary and storage condition before quotation. |
| High tensile steel wire route | Stronger wire route for heavy fill or project-lot barrier units | Confirm wire diameter, tensile expectation and mesh opening. |
| PP geotextile lining | Common liner route for defensive bastion barrier units | Confirm 250-300 g/m2 or requested liner weight, color and fixing method. |
| Polyester fabric lining | Alternative liner route where buyer specification requests polyester | Confirm fabric weight, color and project document requirement. |
| Custom label or pack route | Distributor or project-lot packing route | Confirm mark, label, bundle weight, pallet or crate plan before production. |
| Lining, connector and pallet packing review | Defensive bastion barrier orders where geotextile liner, spiral connector, folded pack size and pallet plan affect quotation and receiving checks | Confirm liner weight, color, connector route, unit count, surface treatment, bundle size, labels and documents. |
Applications and Packing
Applications
- Construction site perimeter protection
- Flood control and erosion prevention
- Stockyard and material area separation
- Temporary event site security
- Road and railway construction barrier
- Industrial facility boundary works
Packing
- Stacked bundles on heat-treated wooden pallet
- Solid wooden crate for heavy units
- Steel cage packing for bulk orders
- Waterproof film inner wrapping
- Custom labeled packing
- Full container loading optimization
Defensive bastion barriers are usually shipped as flat packed, folded, nested or palletized welded mesh units depending on size and project quantity. Packing should confirm unit count per bundle, pallet or wooden crate requirement, liner protection, accessory carton, label format, container loading plan and receiving-proof photos before shipment.
Project-Level Delivery and Documentation Support
ANJIA can support defensive bastion barrier orders as a project-level delivery package including official quotation, technical data sheet, product specification schedule, liner and accessory schedule, material and coating document references, ISO 9001, ISO 14001, CE, RoHS and company qualification references, inspection photos, packing plan and export shipping documents after unit size, mesh, lining, treatment, quantity, packing and destination are confirmed.
| Document or support item | Buyer value | Availability note |
|---|---|---|
| Official Quotation | Confirms unit size, wire, mesh, lining, surface treatment, connection method, quantity, packing and trade terms | Prepared after RFQ details are confirmed. |
| Technical Data Sheet | Helps buyers review welded mesh unit structure, wire diameter, mesh opening, liner and connection scope | Recommended for procurement review. |
| Product Specification Schedule | Summarizes unit size, wire, mesh, lining, galvanized finish, connectors, bundle and packing fields | Useful for project-lot review. |
| Liner and Accessory Schedule | Lists geotextile liner, connector, spiral wire, rings or other accessory scope where applicable | Recommended when barrier units ship as complete sets. |
| Sample Mill Test Certificate | Supports material traceability review where applicable | Availability depends on material route, order requirement and document source. |
| ISO 9001, ISO 14001, CE, RoHS and Company Qualification References | Supports buyer qualification and procurement review where applicable | Provided according to available company and product document scope after buyer request. |
| Inspection Photos and Packing Proof | Helps buyers review unit form, mesh detail, liner, bundle, label and loading before shipment | Arrange requirements before shipment. |
| Packing List, Commercial Invoice and Certificate of Origin | Supports shipment and import document preparation | Prepared according to confirmed order and shipping requirements. |
| Buyer-Side Project Approval Records | Fill material, site layout, installation, legal use and project performance are buyer-side or project-side records | Not issued as product performance guarantees by ANJIA. |
Document availability depends on confirmed specifications, material route, order requirements and requested standards. Please share certificate or compliance requirements during RFQ review.
QC and shipment proof references

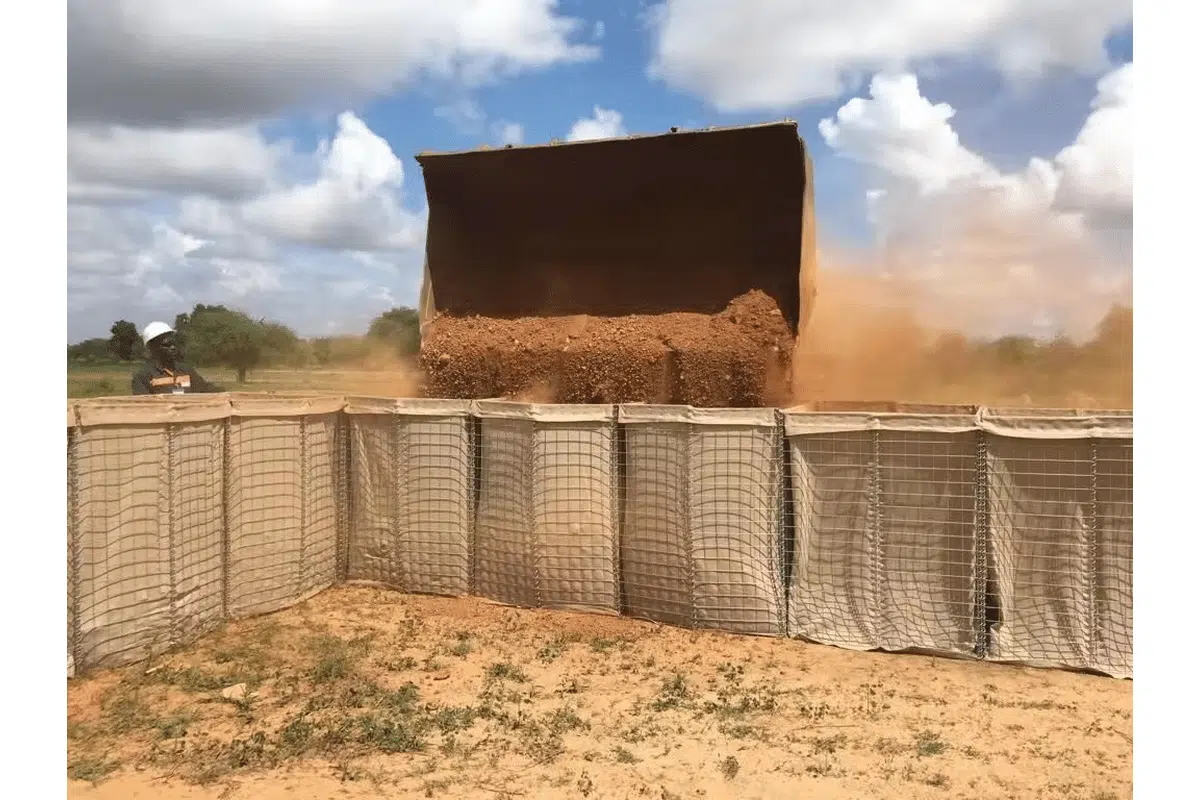

Reusable defensive barrier unit reference
Helps buyers review welded mesh unit size, panel route and connection visibility before quotation

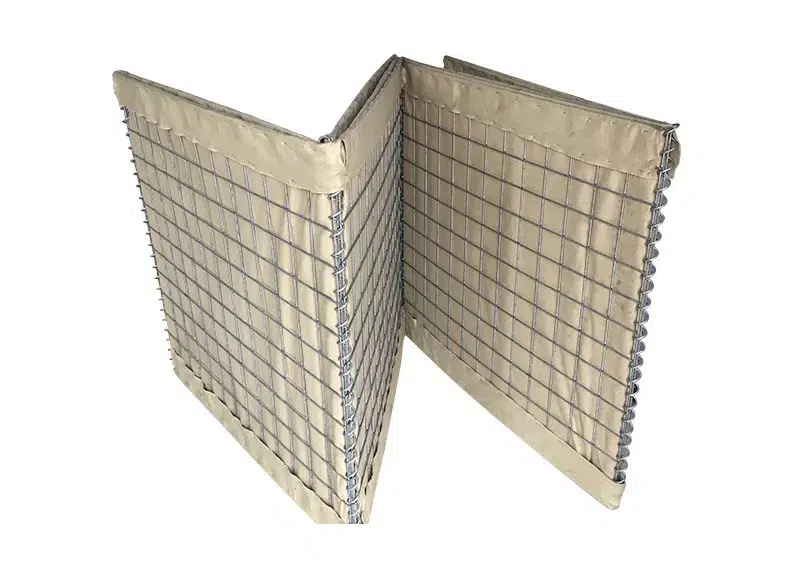

Expanded and folded defensive barrier unit reference
Helps buyers review product form, fabric liner visibility and folded unit condition before quotation
FAQ
What are your standard barrier sizes?
1.0×1.0×1.0m and 2.0×1.0×1.0m are industry standard.
What is the most common mesh opening?
75×75mm (3"×3") is the global standard for sand/gravel fill.
What lining materials are available?
UV-stabilized PP geotextile (250–300 g/m²) and polyester fabric.
Can you provide custom lining colors?
Yes, beige, green and grey are available upon request.
How fast can I get a detailed quotation?
We provide formal quotations within 24 hours after receiving your complete project specifications.
What is your standard production lead time?
Standard orders ship in 10-15 days; urgent orders can be prioritized to meet your project deadline.
Do you offer full export documents?
Yes, complete export document sets are provided.
