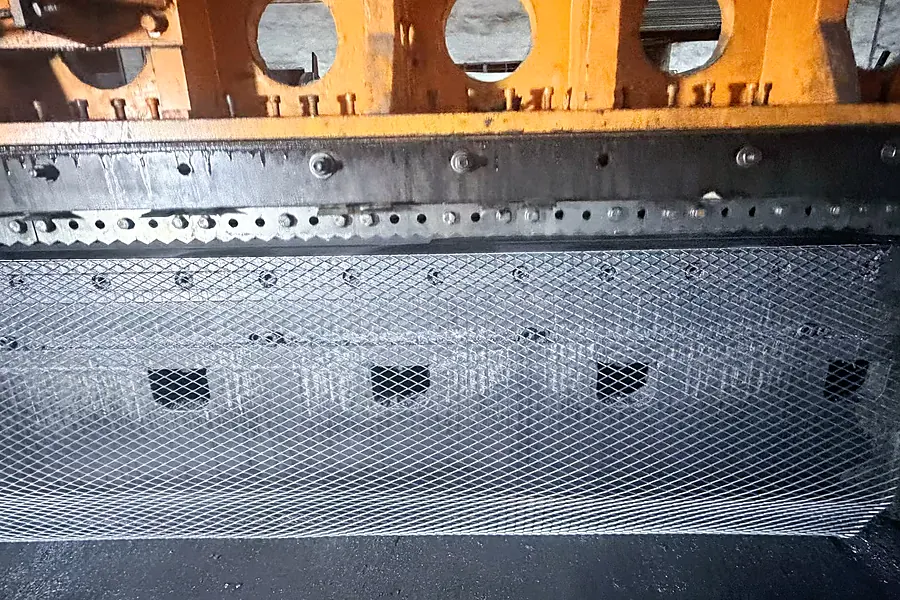

Expanded metal production process reference
Helps buyers review slitting-and-stretching process visibility and sheet forming route before RFQ
Expanded Metal Sheets
ANJIA GROUP supplies precision expanded metal sheets manufactured from one-piece metal plates through stamping and stretching process, available in raised and flattened two profiles with multiple material options. It is widely used for walkway platforms, safety guards, ventilation screening and architectural decoration. All specifications including thickness, opening size, strand width and surface treatment can be customized according to project requirements.
Page sections
What should buyers confirm before sourcing expanded metal sheet?
Expanded metal sheet quotation should start with material grade, raw sheet thickness, LWO, SWO, strand width, sheet size, raised or flattened profile, surface treatment, cut-to-size or edge requirement, quantity, packing, destination port and required documents. This route is suitable for one-piece diamond mesh sheet supply for walkway, guard, ventilation, screening and architectural infill uses.
Product Overview
ANJIA supplies expanded metal sheets manufactured from one-piece metal plates through stamping and stretching, with raised and flattened profiles available for industrial screening, platform, guard, ventilation, fence infill and architectural applications. The existing specification table already covers material routes, raw sheet thickness, LWO, SWO, strand width, sheet size, raised or flattened profile and common surface treatments.
This P1 upgrade keeps the confirmed specs, FAQ, video and single product brochure intact. It adds clearer buyer-first guidance for RFQ structure, profile comparison, surface treatment selection, packing, export document support and related metal sheet routes.
Specifications
| Specification | Common options | Quotation note |
|---|---|---|
| Material | Mild steel, hot-dip galvanized steel, 304/316 stainless steel, aluminum alloy | Confirm material grade based on anti-corrosion and load-bearing requirements of the application. |
| Raw sheet thickness | 0.5mm-6.0mm standard; custom thickness available | Thickness refers to metal sheet before expanding, directly determines mesh strength and overall weight. |
| Mesh opening | Long way opening (LWO): 10mm-200mm; Short way opening (SWO): 5mm-100mm; custom opening available | Both LWO and SWO dimensions are required for accurate production and quotation. |
| Strand width | 1.0mm-10mm standard; custom strand width available | Strand width directly affects mesh rigidity, load-bearing capacity and material weight. |
| Sheet size | Standard: 1000×2000mm, 1220×2440mm; custom cut-to-size available | Confirm sheet dimensions and flatness tolerance before order arrangement. |
| Surface profile | Raised (standard profile); Flattened (smooth surface) | Confirm profile type; flattened mesh provides flat surface for walking and decorative scenarios. |
| Surface treatment | Raw black, electro galvanized, hot-dip galvanized, powder coated, PVC coated | Select treatment grade according to outdoor exposure and expected anti-corrosion service life. |
How to Specify Expanded Metal Sheet for RFQ
To specify expanded metal sheet for RFQ, send the material grade, raw sheet thickness, long way opening, short way opening, strand width, sheet width and length, raised or flattened profile, surface treatment, color if coated, cut-to-size or edge requirement, tolerance or flatness expectation, total quantity, packing method, destination port, trade terms and required document package.
Expanded metal sheet should be quoted by material grade, raw sheet thickness, long way opening, short way opening, strand width, sheet size, raised or flattened profile, surface treatment, color if coated, cut-to-size or edge requirement, tolerance or flatness expectation, packing method and destination. Buyers comparing expanded metal with perforated metal sheet should confirm whether the project needs stretched diamond openings, punched holes, ventilation, guard panels, decorative panels or platform-related sheet supply before quotation.
Typical RFQ details
Product specification
- Raw sheet thickness before expanding
- Long way opening and short way opening
- Strand width and raised or flattened profile
- Sheet width, length and cut-to-size requirement
Finish and application
- Material grade: mild steel, galvanized steel, stainless steel or aluminum
- Surface treatment, color and coating expectation
- Edge trimming, framing, welding or drawing requirement
- Tolerance, flatness or application requirement where relevant
Order and document scope
- Total quantity, packing method, destination port and trade terms
- Required document package, inspection photos or sample approval needs
Product Formats / Options
| Format / option | Best for | Buyer notes |
|---|---|---|
| Raised expanded metal sheet | Standard three-dimensional diamond profile for guard, walkway, ventilation and industrial screening routes | Confirm raw sheet thickness, LWO, SWO, strand width and sheet size. |
| Flattened expanded metal sheet | Smooth flat profile after secondary flattening for decorative, panel or handling-sensitive requirements | Confirm flattened profile, final thickness expectation and surface finish. |
| Galvanized expanded metal panel | Zinc coated route for outdoor, fence infill, guard or project panel use | Confirm zinc coating expectation, sheet size, edge condition and packing. |
| Stainless steel expanded mesh | Stainless route for corrosion-sensitive, screen, filtration or architectural discussions | Confirm 304/316 grade, profile, opening and finishing requirement. |
| Aluminum expanded metal sheet | Lightweight route for ventilation, decorative and non-rusting panel discussions | Confirm alloy, sheet thickness, profile, color and packing protection. |
| Custom cut-to-size or framed expanded sheet | Secondary processing route for project drawings, panels, guards or assemblies | Provide drawing, size tolerance, edge, frame or welding requirement before quotation. |
| Expanded metal sheet vs perforated metal sheet | Buyers comparing stretched diamond mesh sheet with punched-hole sheet for guards, ventilation, decorative panels, screening or industrial project supply | Confirm material, thickness, opening route, strand width or hole pitch, profile, finish, sheet size, packing and destination. |
Material and Surface Finish Options
| Option | When buyers discuss it | RFQ notes |
|---|---|---|
| Raw black mild steel | Cost-effective base route for indoor use or later customer-side finishing | Confirm whether anti-rust oil, packing protection or later coating is required. |
| Electro galvanized finish | Light zinc route for general indoor or mild exposure applications | Confirm coating expectation and storage environment. |
| Hot-dip galvanized finish | Outdoor-oriented zinc route for guard, platform and fence infill applications | Confirm project exposure, zinc requirement and document needs. |
| Powder coated or PVC coated finish | Colored protective route for architectural, fence or decorative panels | Confirm color reference, coating thickness expectation and sample approval route. |
| Stainless steel 304 or 316 | Corrosion-resistant material route for specific environments | Confirm grade, opening, profile and surface finish. |
| Aluminum alloy route | Lightweight and corrosion-resistant route for ventilation or decorative panels | Confirm alloy, profile, sheet size and packing protection. |
| Raised profile, flattened profile and pallet review | Expanded metal sheet orders where profile type, flatness, cut edge, coating route and pallet protection affect supplier comparison | Confirm raised or flattened profile, sheet size, edge route, coating, color, bundle weight, pallet plan and documents. |
Applications and Packing
Applications
- Walkway and platform anti-slip mesh
- Guard and safety protective panels
- Ventilation and screening barriers
- Architectural decoration and fence infill
Packing
- Flat sheets bundled with waterproof protective paper
- Fumigated wooden pallet / wooden case consolidated packing
- Edge-protected packing to avoid deformation during shipment
- Custom private label packing available upon request
Expanded metal sheets are usually supplied as flat sheet bundles with waterproof wrapping, edge protection and pallet or wooden case packing according to sheet size and shipment route. For custom-cut or coated sheets, ANJIA can review sheet stacking, corner protection, label requirement, bundle weight, container loading and document scope before shipment.
Project-Level Delivery and Documentation Support
ANJIA can support expanded metal sheet orders as a project-level delivery package including official quotation, technical data sheet, expanded mesh specification schedule, drawing or sample review, material and coating document references, ISO 9001, ISO 14001, CE, RoHS and company qualification references, inspection photos, packing plan and export shipping documents after material, profile, opening, sheet size, finish, quantity and destination are confirmed.
| Document or support item | Buyer value | Availability note |
|---|---|---|
| Official Quotation | Confirms material, thickness, LWO, SWO, strand width, profile, finish, quantity, packing and trade terms | Prepared after RFQ details are confirmed. |
| Technical Data Sheet | Helps buyers review expanded mesh route, opening, thickness, strand width, sheet size, profile and finish | Recommended for procurement and project review. |
| Expanded Mesh Specification Schedule | Summarizes sheet size, profile, surface treatment, cutting, packing and delivery scope | Useful for multi-size or project-based orders. |
| Sample Mill Test Certificate | Supports material traceability review where applicable | Availability depends on material route, order requirement and document source. |
| ISO 9001, ISO 14001, CE, RoHS and Company Qualification References | Supports buyer qualification and procurement review where applicable | Provided according to available company and product document scope after buyer request. |
| Coating or Third-Party Inspection Reference | Supports surface finish or shipment verification where required | Document availability should be confirmed against product route and inspection arrangement. |
| QA/QC Photos and Inspection Statement | Helps buyers review LWO, SWO, strand width, sheet size, finish, packing and loading before shipment | Can be arranged when inspection requirements are discussed before shipment. |
| Packing List, Commercial Invoice and Certificate of Origin | Supports shipment and import document preparation | Prepared according to confirmed order and shipping requirements. |
Document availability depends on confirmed specifications, material route, order requirements and requested standards. Please share certificate or compliance requirements during RFQ review.
QC and shipment proof references

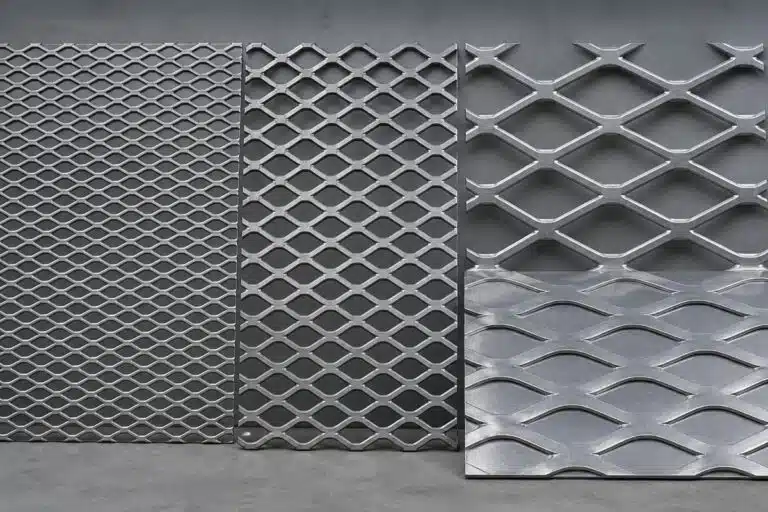

Expanded opening and profile comparison
Helps buyers review diamond opening, raised or flattened profile and specification discussion

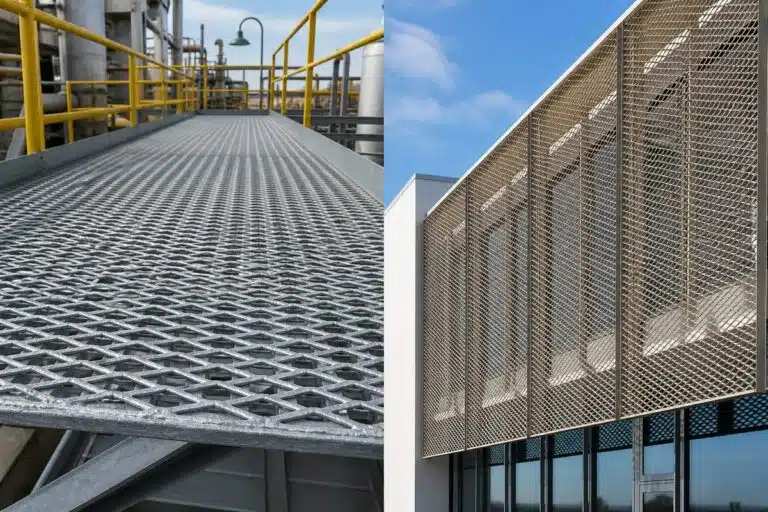

Expanded sheet application reference
Helps buyers review walkway, facade, guard or screening application routes before RFQ
FAQ
What is the difference between raised and flattened expanded metal?
Raised mesh retains the original 3D expanded profile, while flattened mesh is processed by flattening equipment for a smooth flat surface.
What specifications are needed for an accurate quotation?
Please provide material, raw sheet thickness, strand width, long way & short way opening, sheet size, surface finish and order quantity.
What surface coating options are available?
Hot-dip galvanized, electro galvanized, powder coated and PVC coated are available; custom finishes can be discussed based on application.
What material grades do you supply for expanded metal?
Standard options include mild steel, galvanized steel, 304/316 stainless steel and aluminum; custom materials are acceptable.
Can you supply custom cut-to-size panels?
Yes. Custom sheet dimensions and special shape cutting are available with technical drawings or samples.
Can I get samples before placing bulk order?
Yes. Small sample pieces are available for quality and size check; freight is collected by the buyer.
What is the standard lead time for expanded metal orders?
7-12 days for standard specification orders, 15-20 days for customized orders. Full container orders enjoy more competitive pricing.
Related Videos

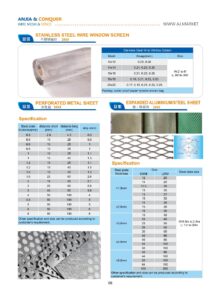

Single Product Brochure Download
