What should buyers confirm before sourcing welded wire mesh panel?

Welded wire mesh panel is a flat welded mesh product supplied by panel size, wire diameter, mesh opening, material, surface treatment, edge or frame requirement and packing method. For an accurate quotation, confirm whether the order needs loose flat panels, cut-to-size sheets, framed panels or a fence-panel route, then send quantity, destination and document requirements.

Product Overview

ANJIA supplies welded wire mesh panels for fencing fabrication, cages, construction reinforcement, industrial guarding, shelving, partitions and custom project supply. Compared with welded wire mesh rolls, panel orders usually need clearer control of width, length, edge treatment, flatness, stacking, pallet protection and loading method.

Existing specifications cover low carbon steel, hot-dip galvanized steel, 304 stainless steel and 316 stainless steel routes, with common panel sizes such as 1.2 x 2.4 m, 1.5 x 3.0 m, 2.0 x 3.0 m and custom sizes. Buyers should confirm wire diameter, mesh opening, surface finish, frame or edge processing, panel count and packing expectation before quotation.

Specifications

Specification	Common options	Quotation note
Material	Low carbon steel / Hot-dip galvanized steel (≥275g/m²) / 304 SS / 316 SS	Confirm grade and corrosion environment.
Standard panel size	1.2×2.4m (4×8ft, global standard) / 1.5×3.0m / 2.0×3.0m / Custom	Size directly determines packing and freight cost.
Wire diameter	1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm / 4.0mm / 6.0mm	2.0-3.0mm is industry standard; send mm/gauge/drawing for quote.
Mesh opening	25×25mm / 50×50mm (2×2in, most common) / 75×75mm / 100×100mm / Custom	Confirm opening together with wire diameter.
Tensile strength	≥350 MPa (low carbon steel) / ≥500 MPa (high tensile)	Provide test report upon project requirement.
Surface treatment	Hot-dip galvanized / Electro galvanized / PVC coated / Powder coated	Hot-dip mandatory for long-term outdoor use.
Edge / frame	Open edge / Trimmed edge / Bent edge / Fully welded steel frame	Welded frame recommended for fencing and finished components.
Packing	Steel strapped bundles / Heat-treated wooden pallets / Wooden crates	1.2×2.4m panels: 50-60 pcs/pallet; confirm before production.

How to Specify Welded Wire Mesh Panel for RFQ

To specify welded wire mesh panels for RFQ, send panel length and width, wire diameter or gauge, mesh opening, material grade, surface treatment, edge or frame requirement, flatness or cut-to-size tolerance expectation, total quantity, packing method, label requirement, destination port, preferred trade terms and required documents or inspection photos.

Welded wire mesh panels and welded mesh rolls should be compared by format, handling method and final fabrication route. Panels are usually reviewed for cages, guarding, shelves, partitions, reinforcement sheets and cut-to-size requirements, while rolls are reviewed for longer continuous mesh runs or flexible site cutting. Buyers should confirm panel length, width, wire diameter, opening, material, coating, flatness, tolerance, edge route, packing, label and destination before quotation.

Typical RFQ details

Product specification

Panel length and width
Wire diameter or gauge
Mesh opening size
Material grade or base wire requirement

Finish and application

Surface treatment and color if required
Edge treatment, cut-to-size or frame requirement
Flatness, tolerance or drawing requirement where applicable

Order and document scope

Total quantity and unit basis
Packing, label, pallet and loading requirement
Destination port, trade terms and required documents

Send Requirement

Product Formats / Options

Format / option	Best for	Buyer notes

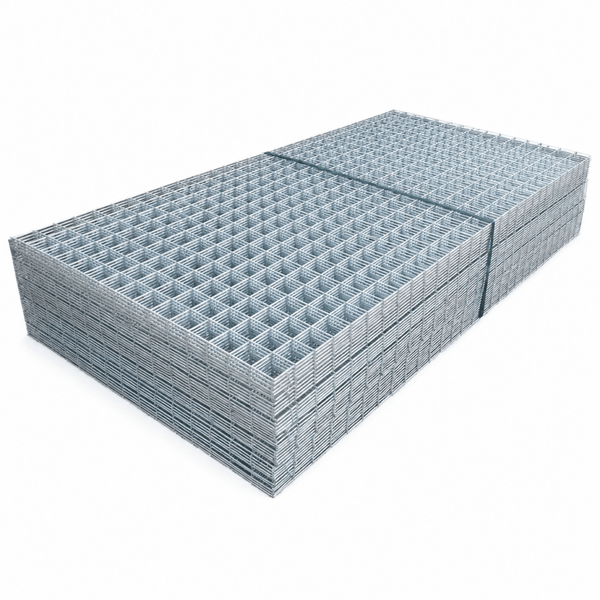

Flat welded mesh panel	Standard route for cages, partitions, guarding, shelves and general panel fabrication	Confirm panel size, wire diameter, mesh opening and surface treatment.
Cut-to-size welded sheet	Used when buyers need custom width, length or finished-piece dimensions	Confirm drawing, tolerance expectation, edge condition and quantity.
Framed welded mesh panel	Used for finished guards, partitions or fence components requiring a frame	Confirm frame material, tube profile, welding requirement and coating route.
Heavy-duty welded panel	Used when rigidity, larger wire diameter or industrial handling is important	Confirm wire diameter, panel size, mesh opening, weight and pallet handling method.
Stainless welded mesh panel	Used when stainless material or cleaner surface requirement is needed	Confirm 304 or 316 grade, opening, wire diameter, surface finish and use environment.
Welded mesh panels vs rolls	Buyers comparing fixed-size panels with roll mesh for cutting, handling or fabrication	Confirm final use, panel size, roll size, wire diameter, opening, flatness, cutting tolerance, packing and loading method.

Material and Surface Finish Options

Option	When buyers discuss it	RFQ notes
Low carbon steel panel	Common base material route for galvanized or coated welded panels	Confirm wire diameter, opening and panel dimension before production.

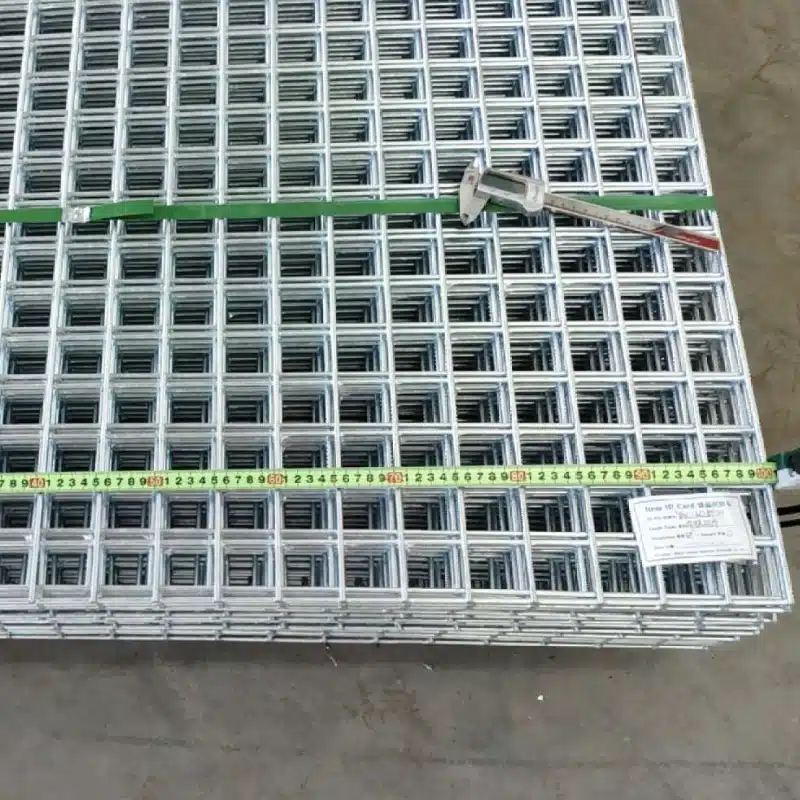

Hot-dip galvanized panel	Outdoor and corrosion-resistance route for many panel orders	Confirm zinc coating expectation, surface appearance and packing protection.

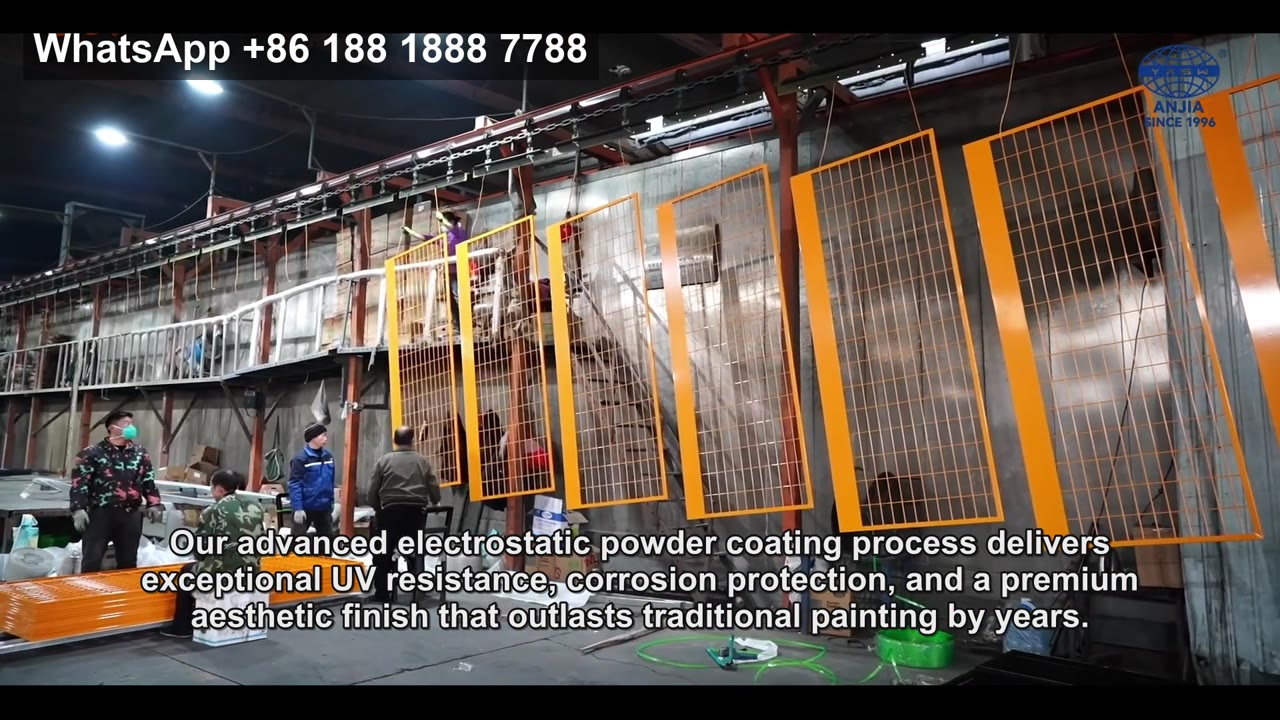

PVC coated or powder coated panel	Color-coated route for visible fence, guard or market-stock panels	Confirm color, coating type, coating thickness expectation and scratch-protection requirement.
304 or 316 stainless steel panel	Stainless material route for cleaner surface, screening or corrosion-context requirements	Confirm grade, wire diameter, opening and final use environment.
Edge or frame processing	Cut edge, trimmed edge, bent edge or framed panel route affects handling and installation	Confirm whether the panel is a raw mesh sheet or a finished component.
Galvanized or PVC coated welded panel review	Outdoor panels, cages, partitions or fence-panel fabrication where corrosion protection or color matters	Confirm zinc coating or PVC thickness, color, wire diameter before and after coating, panel size, packing and destination.

Applications and Packing

Applications

Fence panel fabrication
Cage and animal enclosure
Construction concrete reinforcement
Industrial machine guarding
Warehouse shelving and partition
Slope and erosion protection
Road and railway barrier
Agricultural fencing

Packing

Steel strapped panel bundles with waterproof film wrapping
Heat-treated wooden pallet packing (IPPC certified) for export
Solid wooden crate packing for heavy or fragile panels
Custom product labels and barcodes by order
Mixed container loading with other wire mesh products

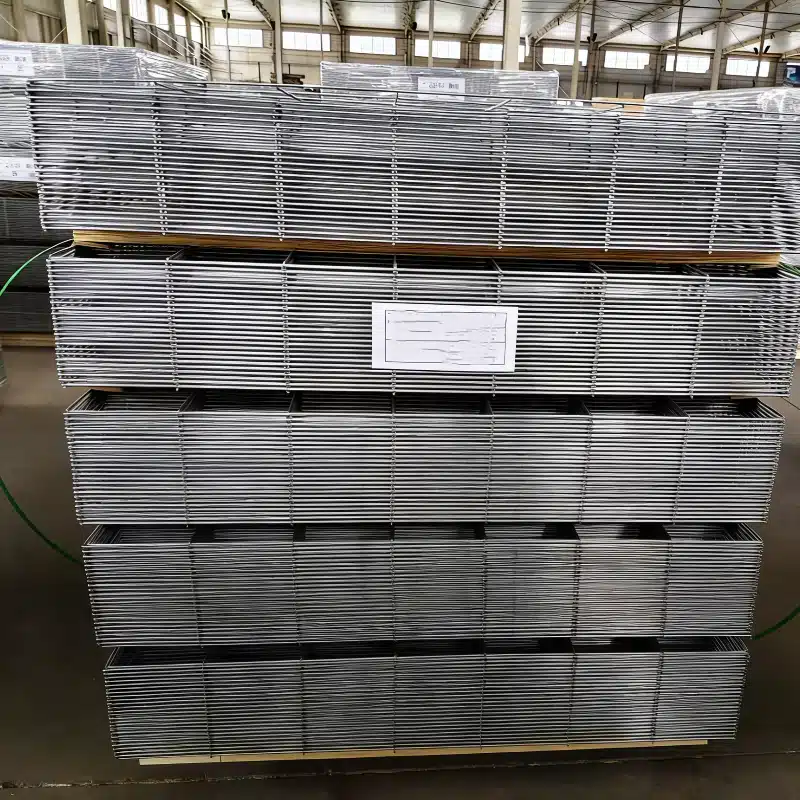

Welded wire mesh panels are usually stacked in bundles, strapped and palletized for export. Surface protection, corner protection, wrapping, label control and loading sequence should be reviewed before shipment, especially for galvanized, PVC coated, powder coated or stainless panels. For mixed-container orders, panel size and pallet height should be checked together with unloading method and destination requirements.

Project-Level Delivery and Documentation Support

ANJIA can review welded wire mesh panel orders as a project-level supply package with official quotation, technical data sheet, panel specification schedule, packing plan, qualification references, QA/QC photos and shipment documents after panel size, material, finish, quantity, packing and destination are confirmed.

Document or support item	Buyer value	Availability note
Official Quotation	Confirms panel size, wire diameter, mesh opening, material, finish, quantity, packing and trade terms	Prepared after RFQ details are confirmed.
Technical Data Sheet	Helps buyers review panel dimensions, wire diameter, opening, material grade, surface treatment and packing notes	Recommended for project and distributor approval.
Specification and Packing Schedule	Helps confirm panel count, bundle size, pallet method, label requirement and loading plan	Recommended for export and mixed-container orders.
Sample Mill Test Certificate	Supports material traceability review where applicable	Availability depends on material route, order requirement and document source.
ISO 9001, ISO 14001, CE, RoHS and Company Qualification References	Supports vendor qualification and procurement review where applicable	Provided according to available company and product document scope after buyer request.

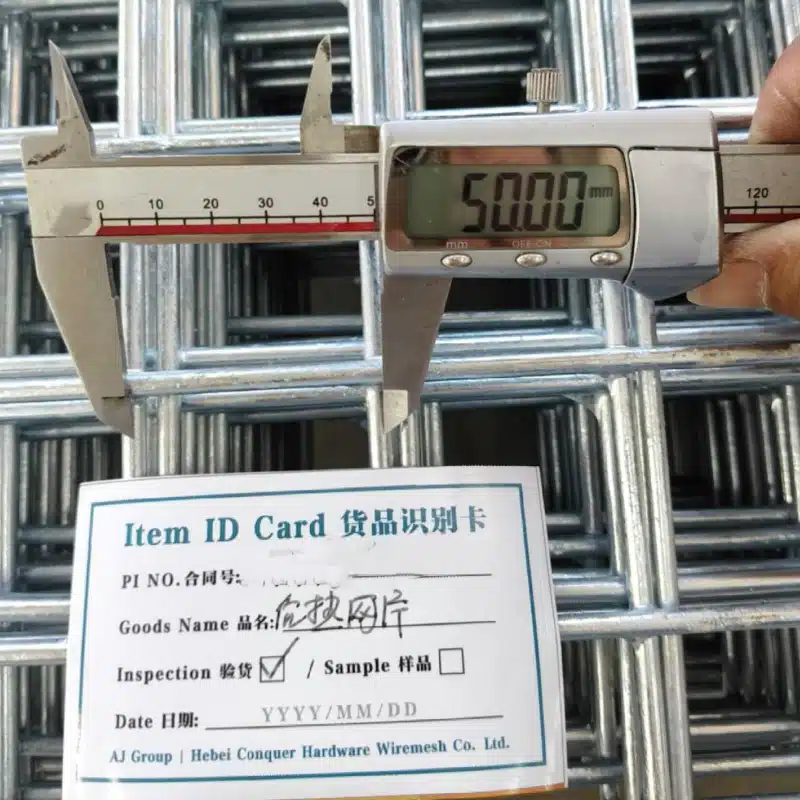

QA/QC Photos and Inspection Statement	Helps buyers review panel dimensions, mesh opening, weld condition, coating and packing before shipment	Can be arranged when inspection requirements are discussed before shipment.
Packing List, Commercial Invoice and Certificate of Origin	Supports shipment and import document preparation	Prepared according to confirmed order and shipping requirements.

Document availability depends on confirmed specifications, material route, order requirements and requested standards. Please share certificate or compliance requirements during RFQ review.
