Galvanized before welding
Hot-dip or electro-galvanized wire is welded into the mesh. Confirm the required surface route and acceptance criteria in the quotation.
Welded Wire Mesh Rolls
ANJIA GROUP manufactures industrial-grade welded wire mesh in continuous rolls, flat structural sheets, and rigid panels for concrete reinforcement, security fencing, and agricultural enclosures. All engineering specifications—including structural wire gauges, precise grid openings, and zinc/PVC coating densities—are fully calibrated to match international project standards.

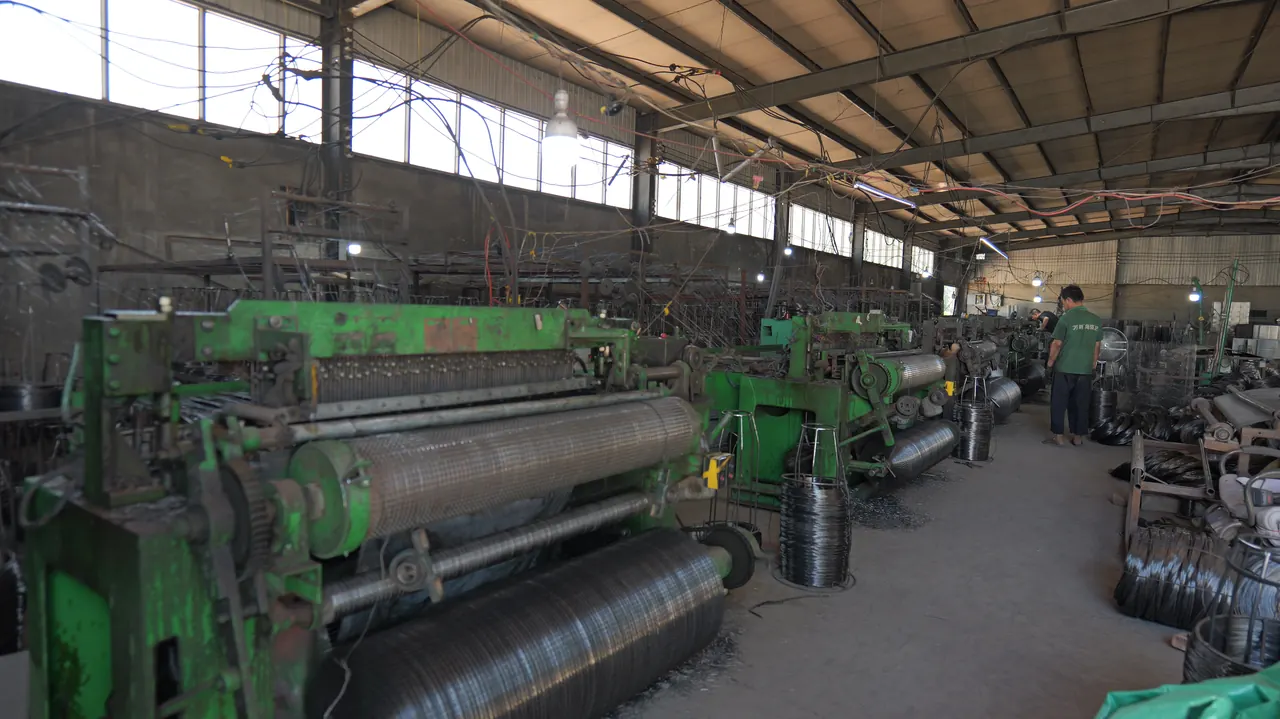

Production

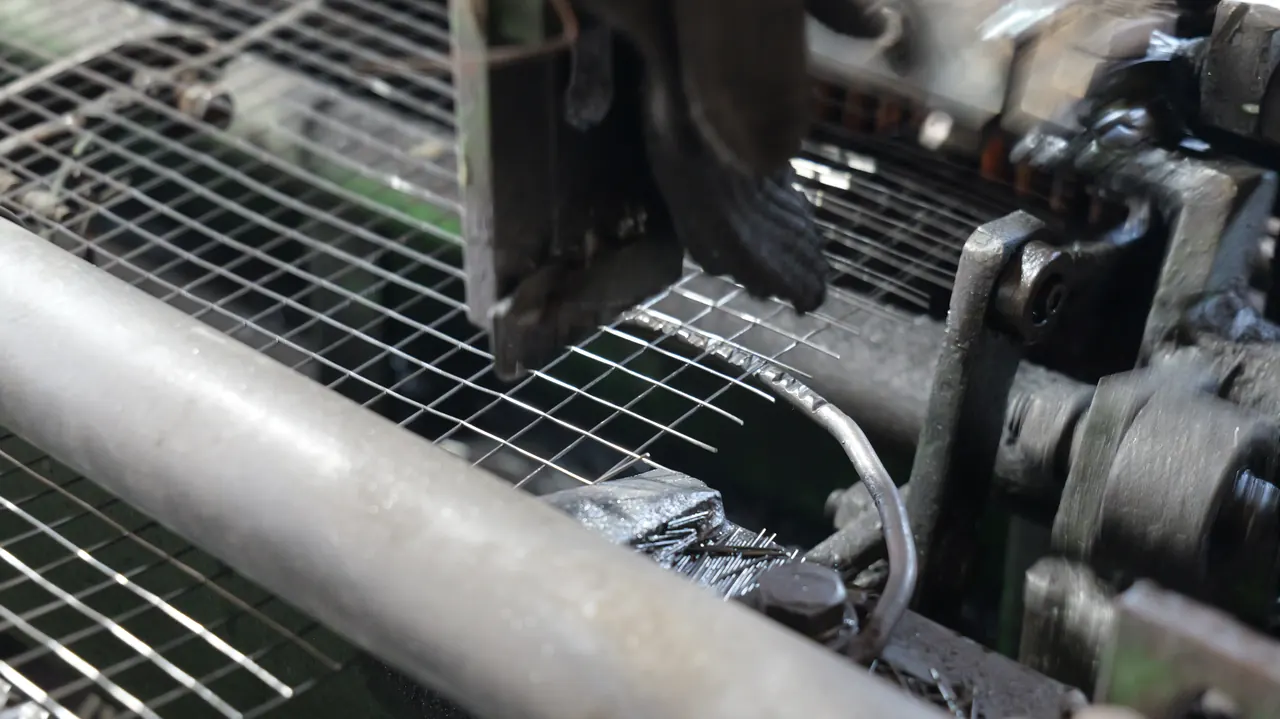

Evidence from the welded wire mesh roll production and packing workflow.
Final opening, wire diameter, weld condition, roll size and packing are confirmed against the order specification.
Product Specifications
The catalog combinations below keep each opening paired with its listed gauge and millimeter wire diameter. Select one row, then confirm roll width, roll length, finish and quantity.
| Opening | Nominal opening | Wire gauge | Wire diameter |
|---|---|---|---|
| 1" × 2" | 25.4 × 50.8 mm | BWG14 | 2.10 mm |
| 1" × 2" | 25.4 × 50.8 mm | BWG15 | 1.82 mm |
| 1" × 2" | 25.4 × 50.8 mm | BWG16 | 1.65 mm |
| 1" × 2" | 25.4 × 50.8 mm | BWG17 | 1.47 mm |
| 1" × 1" | 25.4 × 25.4 mm | BWG14 | 2.10 mm |
| 1" × 1" | 25.4 × 25.4 mm | BWG15 | 1.82 mm |
| 1" × 1" | 25.4 × 25.4 mm | BWG16 | 1.65 mm |
| 1" × 1" | 25.4 × 25.4 mm | BWG17 | 1.47 mm |
| 1" × 1" | 25.4 × 25.4 mm | BWG18 | 1.24 mm |
| 1" × 1" | 25.4 × 25.4 mm | BWG19 | 1.06 mm |
| 3/4" × 3/4" | 19 × 19 mm | BWG16 | 1.65 mm |
| 3/4" × 3/4" | 19 × 19 mm | BWG17 | 1.47 mm |
| 3/4" × 3/4" | 19 × 19 mm | BWG18 | 1.24 mm |
| 3/4" × 3/4" | 19 × 19 mm | BWG19 | 1.06 mm |
| 3/4" × 3/4" | 19 × 19 mm | BWG20 | 0.88 mm |
| 1/2" × 1" | 12.7 × 25.4 mm | BWG17 | 1.47 mm |
| 1/2" × 1" | 12.7 × 25.4 mm | BWG18 | 1.24 mm |
| 1/2" × 1" | 12.7 × 25.4 mm | BWG19 | 1.06 mm |
| 1/2" × 1/2" | 12.7 × 12.7 mm | BWG18 | 1.24 mm |
| 1/2" × 1/2" | 12.7 × 12.7 mm | BWG19 | 1.06 mm |
| 1/2" × 1/2" | 12.7 × 12.7 mm | BWG20 | 0.88 mm |
| 1/2" × 1/2" | 12.7 × 12.7 mm | BWG21 | 0.81 mm |
| 1/2" × 1/2" | 12.7 × 12.7 mm | BWG22 | 0.71 mm |
| 1/4" × 1/4" | 6.35 × 6.35 mm | BWG23 | 0.63 mm |
| 3/8" × 3/8" | 9.35 × 9.35 mm | BWG21 | 0.81 mm |
Ordering note: Continuous welded wire mesh rolls are the scope of this page. Custom combinations are reviewed against production feasibility and order quantity; do not assume every catalog combination is held in stock.
Surface Finish & Options
Galvanized after welding
The welded mesh is galvanized through an external processing partner. State the required route, exposure and inspection criteria.
PVC coated
Available with a black-wire or galvanized-wire core. Confirm core diameter, finished diameter, color and coating requirement separately.

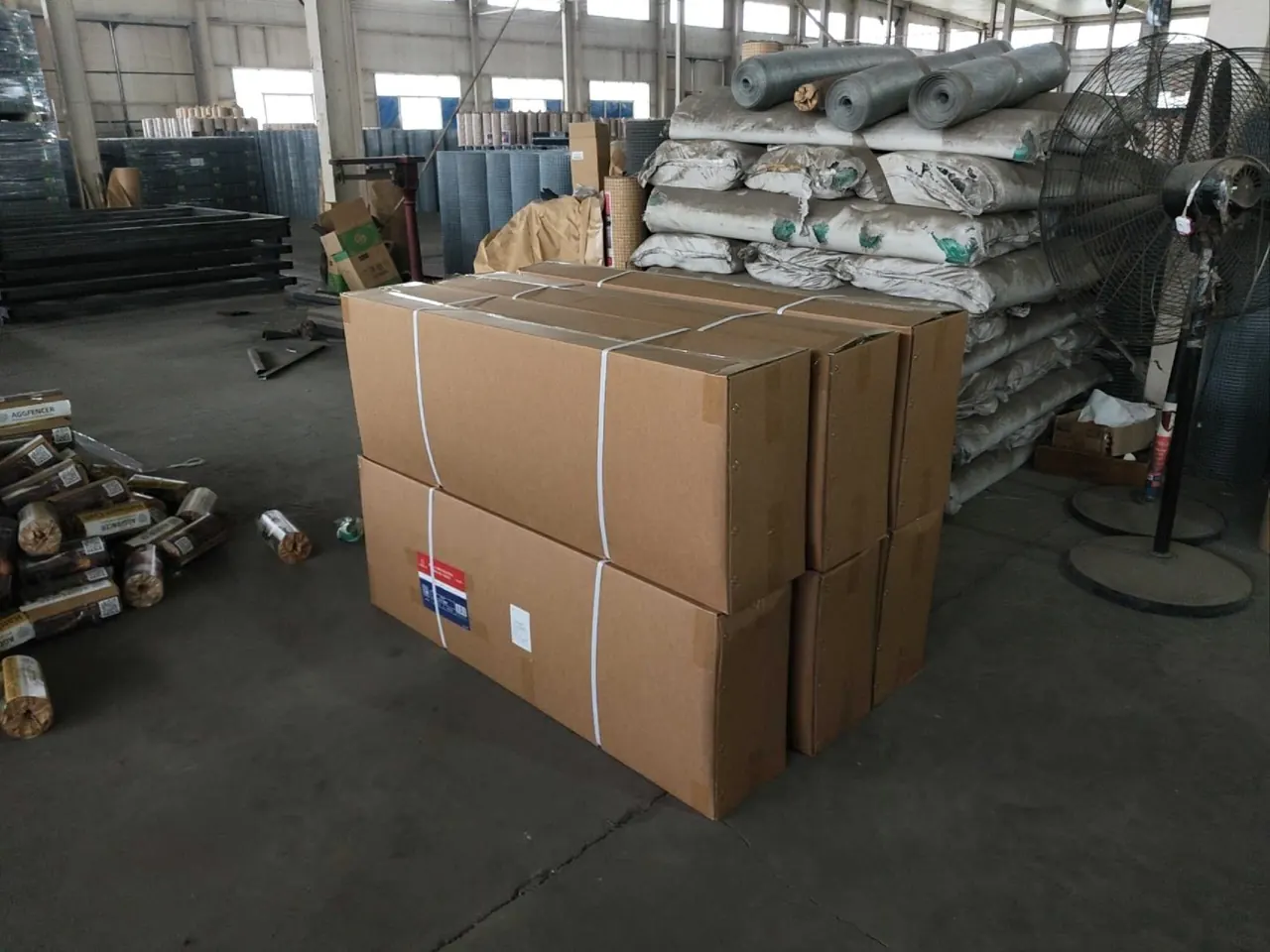

Packing: waterproof paper, plastic shrink film or another agreed export packing method. Labels, SKU separation and pallet requirements are confirmed per order.
Applications
Agricultural & animal enclosure
Compare opening, wire diameter and exposure before selecting mesh for poultry, small-animal cages or farm boundaries.
Garden & general protection
Use the application and expected service environment to select galvanized or PVC coated rolls.
Screening & light partitions
Share fixing method, support spacing and any dimensional tolerance. Engineered or load-bearing use needs project review.
Market Reference
United States
- Wire
- 14GA
- Opening
- 1" × 1" / 1" × 2"
- Roll size
- 2–6 ft × 100 ft
- Finish
- Hot-dip galvanized after welding
Ghana
- Wire
- 1.6 mm
- Opening
- 1/2"
- Roll size
- 3 / 4 / 6 ft × 30 m
- Finish
- Hot-dip galvanized or green PVC
Russia
- Option 1
- 6 × 6 mm · 0.5 mm
- Roll size
- 1m × 15m
- Option 2
- 50 × 50 mm · 1.4 mm
- Roll size
- 1.5m × 25m
Market references help start a specification discussion. Availability, tolerances, finish and packing are confirmed for each order.
Project-Level Delivery and Documentation Support
For distributor orders, engineering procurement and project quotation review, ANJIA can prepare product and shipment documents based on confirmed specifications and order requirements. Document support should be discussed during RFQ review so the quotation can reflect the product form, material, finish, packing method, destination and requested approval documents.
| Document or support item | Buyer value | Availability note |
|---|---|---|
| Official Quotation | Supports approval, comparison and procurement filing | Prepared after product form, specification, quantity, packing and destination are confirmed. |
| Technical Data Sheet | Summarizes confirmed mesh opening, wire diameter, material, finish, size and packing notes | Can be prepared from confirmed product parameters for project review. |
| Sample Mill Test Certificate | Supports material traceability review where applicable | Availability depends on material route, order requirements and document source. |
| Company Product Profile | Helps buyers assess factory capability, export experience and product scope | Available for supplier qualification review upon request. |
| Company Registration Details | Supports vendor setup, import preparation or supplier verification | Can be provided where appropriate after buyer request and document review. |
| QA/QC Statement and Inspection Photos | Helps buyers review measurement, packing and pre-shipment condition | Can be arranged when inspection requirements are discussed before shipment. |
| Packing List, Commercial Invoice and Certificate of Origin | Supports shipment and import document preparation | Prepared according to confirmed order and shipping requirements. |
Document availability depends on confirmed specifications, material route, order requirements and requested standards. Please share certificate or compliance requirements during RFQ review.
QC and shipment proof references

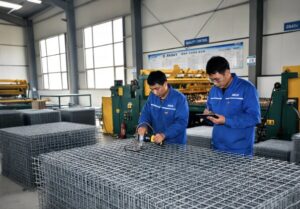

ANJIA QC measurement process reference
Shows the general measurement review process ANJIA can use before shipment; project-specific inspection photos can be discussed during RFQ review

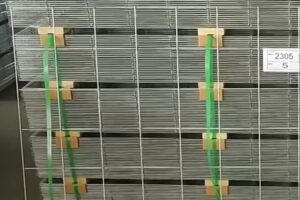

Export pallet packing review
Helps buyers review stacking, wrapping and pallet protection for export orders
Container loading check
Helps buyers review loading preparation and shipment handling before dispatch
Business Quote
Tell us what you need. We’ll help confirm the details and prepare a quote for your order.
Documents & FAQs
Ask for a quotation, specification summary, agreed inspection photos and shipment documents. Document availability depends on the final material and processing route.
What details are needed for a welded wire mesh roll quotation?
Provide opening, wire diameter, roll width, roll length, finish and quantity. Add packing, labels, destination and inspection requirements when relevant.
Are welded rolls and welded panels interchangeable?
No. Rolls, cut sheets and rigid fence panels use different size, edge, packing and application checks. This page covers continuous welded wire mesh rolls.
Can PVC color and finished diameter be specified?
Yes. State the core wire, finished outside diameter, color and any coating acceptance requirement.
Can different roll sizes be combined?
Provide an itemized schedule with quantity by size. Mixed-SKU packing and loading are reviewed with the order.
Related Videos

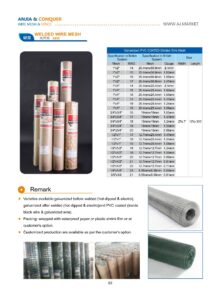

Single Product Brochure Download
